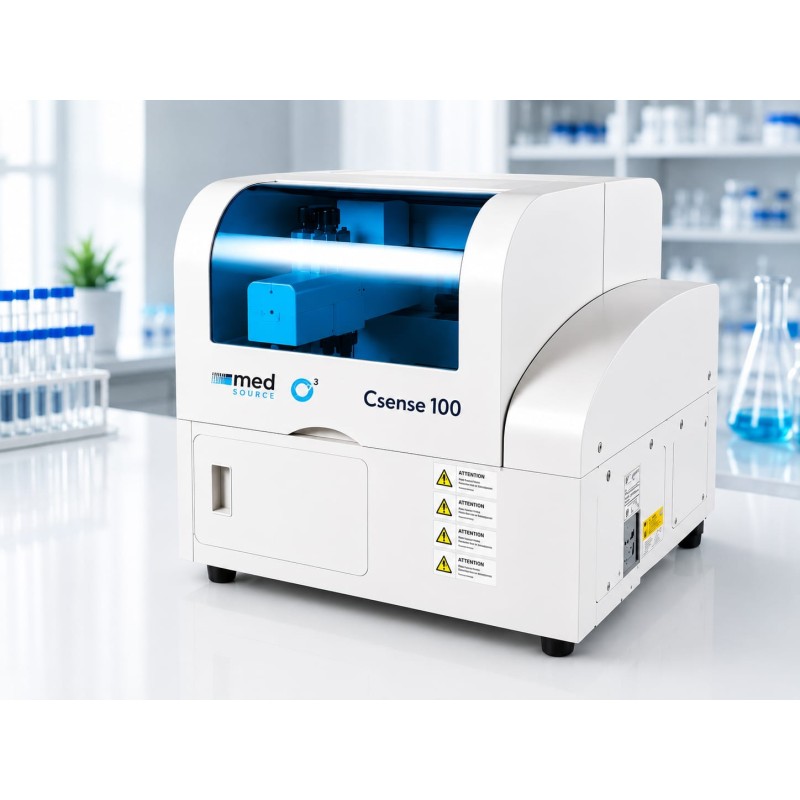

FULLY AUTOMATED BIOCHEMISTRY ANALYZER (Csense 100 )

The Csense 100 Automated Chemistry Analyzer is a compact, fully automated, random-access clinical chemistry system designed for small- to medium-sized diagnostic laboratories. Built to deliver high accuracy with minimal manual intervention, the unit offers a throughput of up to 100–120 tests per hour for single and dual reagent assays.

Key Features & Capabilities

• Throughput & Speed: Delivers 100 to 120 photometric/biochemical tests per hour with STAT emergency sample prioritization.

• Sample & Reagent System: Includes a drawer-style layout supporting up to 50 reagent positions and 22 sample positions (expandable up to 71 positions) with onboard refrigeration to maintain reagent integrity.

• Reaction & Optical Unit: Features 48 reusable reaction cuvettes serviced by an automatic 6-stage laundry unit, paired with an 8-wavelength photometric detection system (340–700 nm).

• Multi-Functional Probe: Equipped with level sensing, liquid dispensing, automatic mixing, and collision protection to prevent operational mishaps.

• Cost-Effective Design: Low water consumption (~3–5 L/hr) combined with reusable cuvettes minimizes operational costs and waste generation.

Target Applications

• Routine Biochemistry Testing (Liver, Kidney, and Lipid Profiles)

• Immunoturbidimetry Assays & Protein Assays

• Enzyme and Electrolyte Analysis
